The Importance of Screw Conveyor Flights

Screw conveyor flights play a crucial role in the operation of screw conveyor systems, contributing to the transportation and lifting of materials.

They are responsible for generating the necessary torque to move materials from one point to another.

Learn About Common Types of Screw Conveyor Flights

Screw conveyor flights can be classified based on several factors, including shape, size, and function.

Each type of flight offers unique advantages and is used in different applications.

Below is a list of 12 common types of screw conveyor flights. Each type has its own pros and cons, and the choice depends on your specific application needs.

[/ux_image_box]

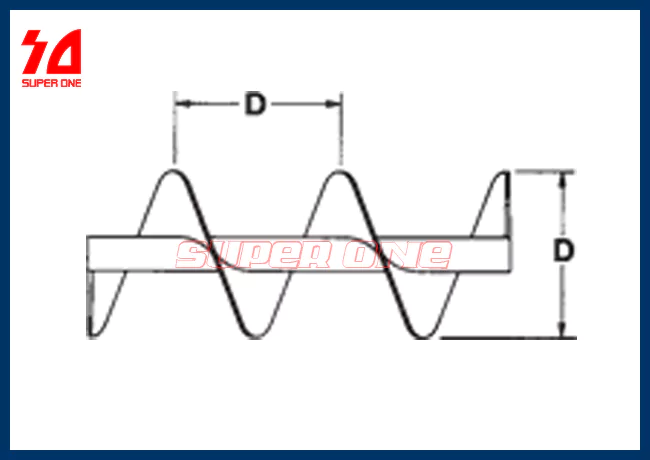

Loai Canh 01 665bea989edf1

Standard Pitch – Single Flight

This is a screw conveyor flights with a pitch equal to the screw diameter. It is widely used in most general applications.

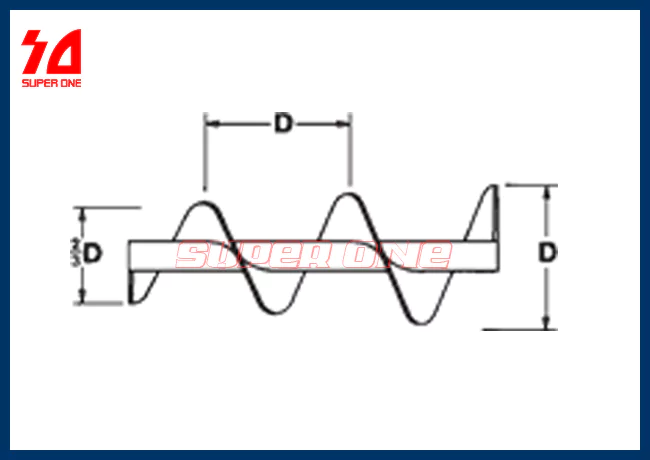

Loai Canh 02 665bea980d186

Standard Pitch – Increasing Diameter

This type of flight features a gradually increasing diameter from 75% to a full 100%. It is commonly used to uniformly convey and mix materials.

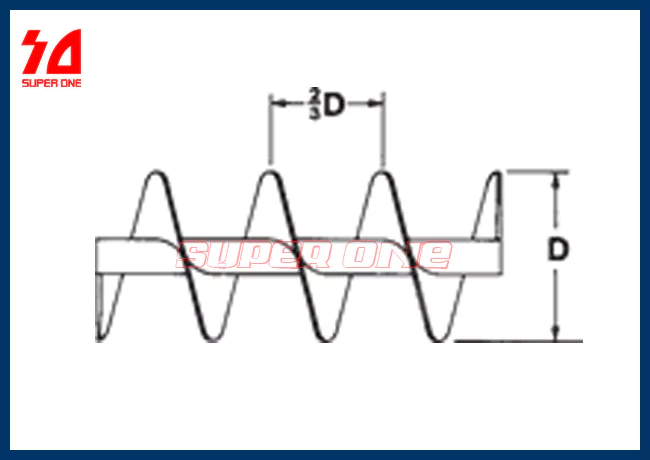

Loai Canh 03 665bea97939c2

Short Pitch – Single Flight

This type of screw conveyor flights has a pitch equal to 75% of the screw diameter. Commonly used in inclined or vertical screw conveyors.

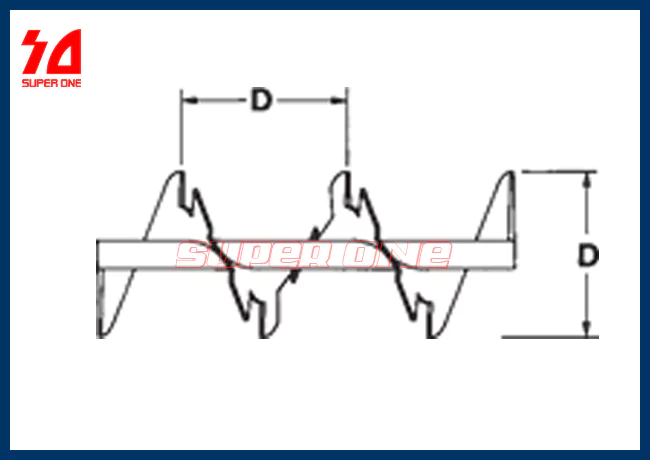

Loai Canh 04 665bea96da4f5

Standard Pitch – Cut Flight

This type of single flight has a standard pitch. It provides strong agitation and mixing of materials during conveying.

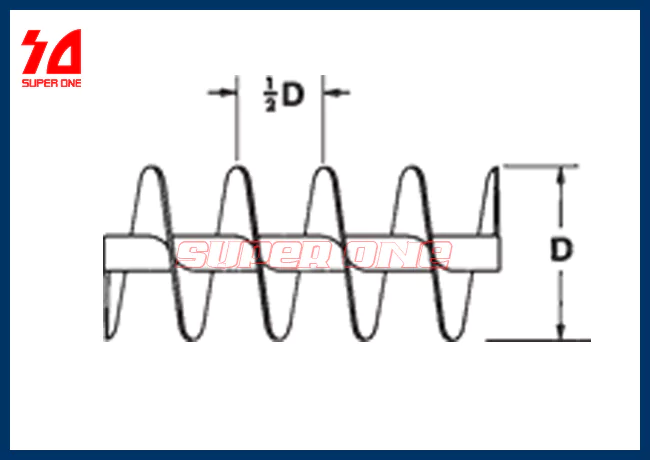

Loai Canh 05 665bea991fa55

Extra Short Pitch – Single Flight

A screw flight type with a pitch equal to only half of the screw diameter. It is typically used for conveying extremely fluid materials.

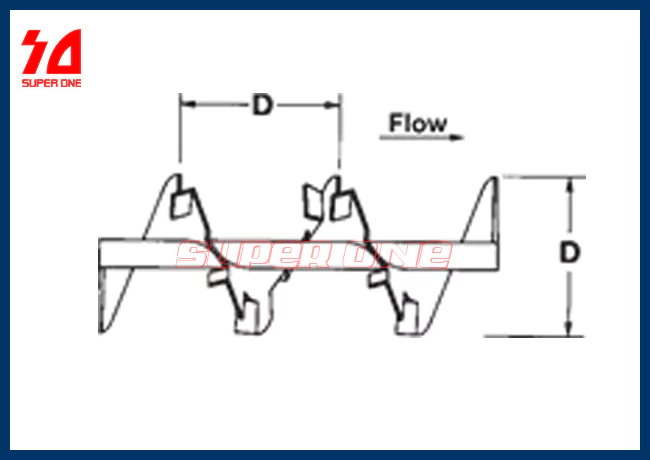

Loai Canh 06 665bea9d52315

Standard Pitch – Cut & Mixing Flight

This screw flight is welded with an additional mixing fin to slow down material fall. It is also used for light stirring, loosening, and reducing material temperature.

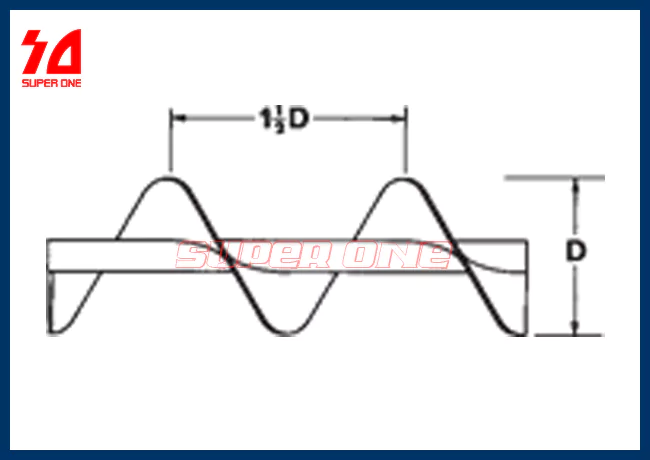

Loai Canh 07 665bea9d42031

Wide Pitch – Single Flight

This screw flight has a pitch 1.5 times the screw diameter, making it ideal for mixing liquid materials or rapidly conveying bulk materials.

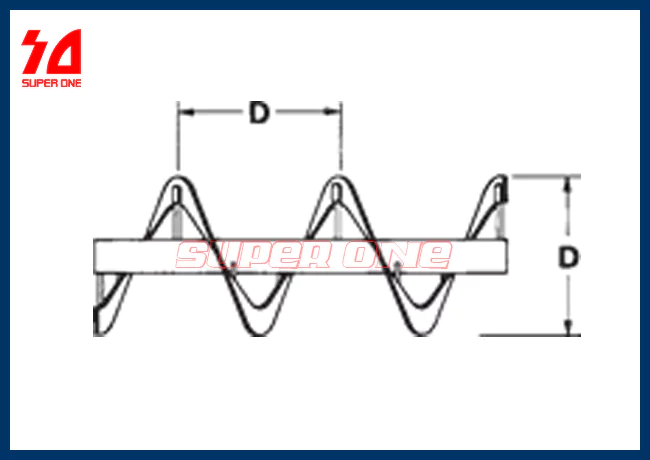

Loai Canh 08 665bea9c2f86f

Standard Pitch – Mixing Single Flight

This is the best screw conveyor flight for conveying and evenly mixing sticky or viscous materials. The large clearance between the flight and the shaft helps prevent material build-up.

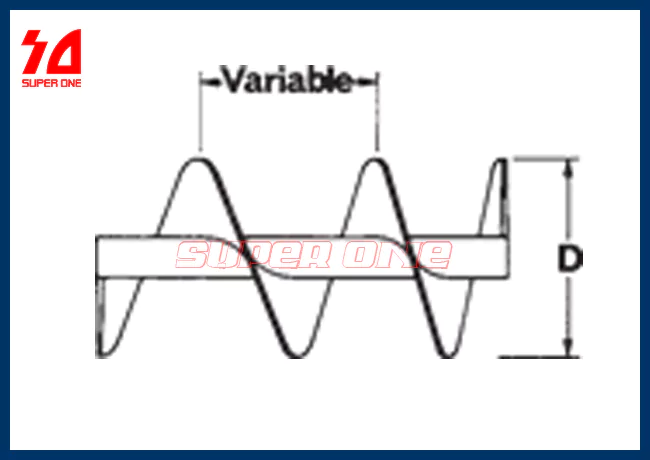

Loai Canh 09 665bea9c34b25

Variable Pitch – Single Flight

A screw flight with progressively increasing pitch along its length. Used as a feeder screw to evenly deliver fine, free-flowing materials across the entire inlet length.

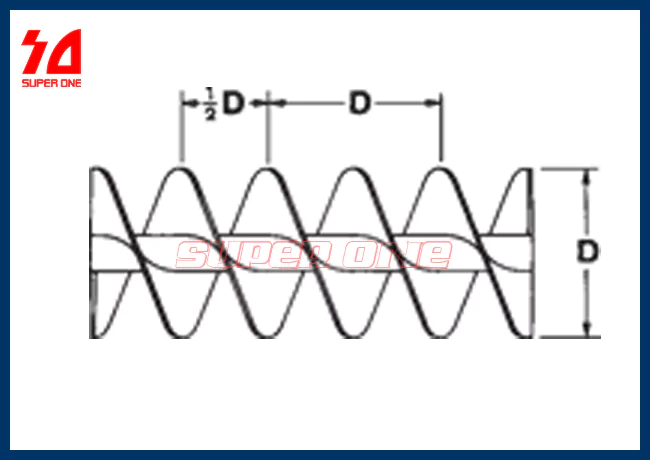

Loai Canh 11 665bea9b1a656

Standard Pitch – Double Flight

A screw with two standard-pitch flights mounted symmetrically. Provides smooth, consistent, and uniform material flow for certain types of materials.

Loai Canh 12 665bea9a2b16b

Mixing Ribbon Flight

A ribbon-type mixing flight designed to provide optimal mixing and agitation of the material flow.

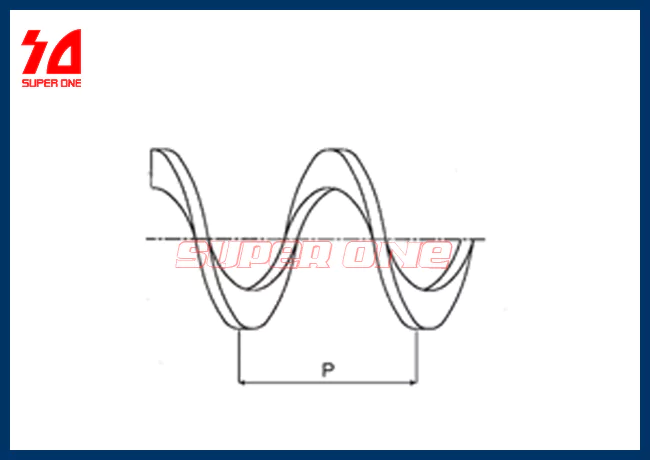

Loai Canh 13 665bea99de4f7

Standard Pitch – Shaftless Flight

Shaftless screw flights are self-cleaning, helping reduce clogging and maintenance.

Choosing the Right Screw Conveyor Flight

Selecting the appropriate type of screw conveyor flight depends on various factors such as material type, load, conveying speed, and working environment.
It’s essential to clearly define the application requirements to ensure optimal performance.

How Many Types of Screw Conveyors Are Commonly Used in Industry?

Technical Specifications for Screw Conveyor Flights

Below are general specifications for custom flight orders:

  • Flight type: Various

  • Outer diameter: 80–1000 mm

  • Inner diameter: 50–900 mm

  • Flight pitch: As requested

  • Flight thickness: 1–25 mm

  • Materials: SUS304, SUS201, SS400, SUS316, SS400, CT3, Q345, etc.

  • Screw conveyor length: As requested

The specifications listed above are standard options; however, we are capable of manufacturing nearly all types of screw conveyor flights upon request.

    Super One – Trusted Supplier of Screw Conveyor Flights

    Super One is the top choice if you’re looking for a reliable supplier of screw conveyor flights.

    With many years of industry experience and a strong commitment to quality, Super One ensures the best screw conveyor flight products to meet all your needs.

    Contact Us

    Don’t hesitate to reach out to us for more information about screw conveyor flights and our services.

    When placing an order with Super One, you’ll receive the following benefits:

    • Free design consultation

    • CO, CQ material certification provided

    • Complete documentation and invoicing

    • Post-sale maintenance service

    • Competitive market pricing

    ☎ We are committed to delivering superior performance, energy efficiency, and reliability. With our experienced engineering team, we’re ready to support you from design to maintenance. Contact us today for more information.
